공압식 스트래핑 헤드(Weld Type SJSM-W)

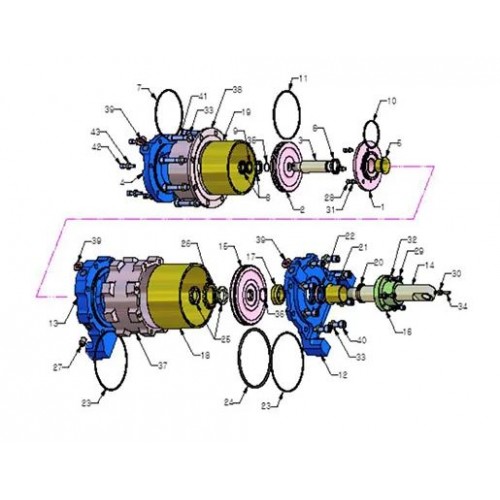

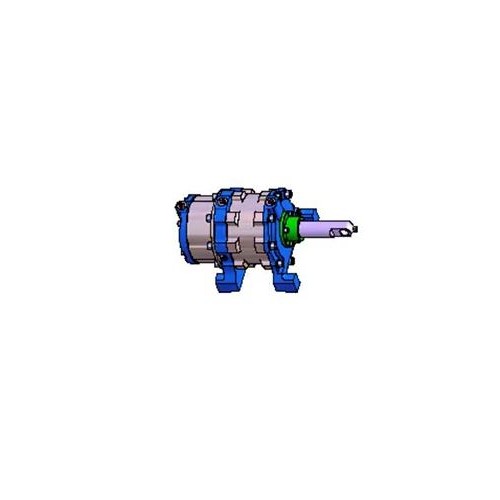

AIR CYLINDER ASS’Y
| Model | SJSM-W |
| S/N | 231400 |
| Q-CODE | Q4013139 |
| NO. | Q-CODE | DESCRIPTION | PART NO. | SPEC. | QUANTITY | REMARK |
|---|---|---|---|---|---|---|
| Q4002231 | SEAL CASE (B) | E-569411 | ||||
| 1 | Q4013139 | AIR CYLINDER ASS'Y | 231400 | |||
| 2 | Q4006777 | PISTON (B) | E-569414 | |||
| 3 | Q4002688 | DIA.30 SHAFT | E-569415 | |||
| 4 | Q4005782 | BACK COVER | E-569416 | |||
| 5 | Q4002218 | OILLESS BUSH | E-569433 | IFF3020 | ||
| 6 | PACKING | E-569435 | PNY30 (NBR) | |||
| 7 | O-RING | E-569436 | G-120 (NBR) | |||
| 8 | BEARING NUT | E-569440 | AN-04 | |||
| 9 | BEARING NUT WASHER | E-569441 | AW-04 | |||
| 10 | O-RING | E-569443 | G-65 (NBR) | |||
| 11 | O-RING | E-569447 | P-115 (NBR) | |||
| 12 | Q4006720 | FRONT HEAD COVER | E-569461 | |||
| 13 | Q4006721 | REAR HEAD COVER | E-569462 | |||
| 14 | Q4002689 | DIA.50 SHAFT | E-569463 | |||
| 15 | Q4006699 | PISTON (A) | E-569464 | |||
| 16 | Q4002181 | SEAL CASE (A) | E-569465 | |||
| 17 | Q4002710 | SPACER | E-569466 | |||
| 18 | Q4005795 | DIA.150 CYLINDER PIPE | E-569467 | |||
| 19 | Q4005811 | DIA.125 CYLINDER PIPE | E-569468 | |||
| 20 | DUST SEAL | E-569470 | SDR40 (NBR) | |||
| 21 | OILLESS BUSH | E-569471 | LFF4040 | |||
| 22 | PACKING | E-569472 | PNY40 (NBR) | |||
| 23 | Q1021853 | O-RING | E-569473 | G-145 (NBR) | ||
| 24 | Q1021637 | O-RING | E-569474 | P-140 (NBR) | ||
| 25 | Q1021347 | BEARING NUT | E-569475 | AN-06 | ||
| 26 | Q3900287 | BEARING NUT WASHER | E-569476 | AW-06 | ||
| 27 | Q4006739 | AIR VENT | E-569625 | |||
| 28 | S.H.C.SCREW | E-569709 | M6 x 20L | |||
| 29 | S.H.C.SCREW | E-569718 | M8 x 30L | |||
| 30 | HEX NUT | E-569751 | M8 | |||
| 31 | SPRING WASHER | E-569760 | M6 | |||
| 32 | SPRING WASHER | E-569761 | M8 | |||
| 33 | SPRING WASHER | E-569763 | M12 | |||
| 34 | Q4008976 | SET SCREW,LONG,DOG POINT | E-569768 | |||
| 35 | O-RING | E-569414-1 | S-20 (NBR) | |||
| 36 | O-RING | E-569464-1 | S-40 (NBR) | |||
| 37 | CYLINDER COVER(L) | E-569467(°³¹ß) | ||||
| 38 | CYLINDER COVER(R) | E-569468(°³¹ß) | ||||
| 39 | PE COVER | PT 1/2 | ||||
| 40 | HEX HEAD BOLT | M12x35Lx1.25P | ||||
| 41 | HEX HEAD BOLT | M12x65Lx1.26P | ||||
| 42 | HEX HEAD BOLT | M8x35Lx1.25P | ||||
| 43 | WASHER | M8 |
